Multi-jet

DS78TBR-15~50E/C (Class C)


DS78TBR-E/C is an inferential, multi-stream, wet dial, straight reading type meter for cold water, and it’s suitable for domestic use. Brass body, internal mechanisms are made from wear-resistant, waterproof, antimagnetic and antiscaling plastic material. No leak, mechanical transmission not effected by external magnetic fields or ferrous particles in water.

SPECIALITY:
☆    Internal filter of adequate filtering section.
☆    Large measuring range and high flow accuracy
☆    Low start-up flow, high sensitivity, long life of service time.

WORKING CONDITION:
☆    The Max. Admissible Pressure: 1.6MPa(16bar)
☆    Water Temp. : not more than 50℃

Maximum permissible error:
Between qt (included) and qs is ±2%;
Between qmin and qt (excluded) is ±5%.
NOTE: The technical data conform to ISO4064 standard, class C.
FLOW-ERROR CURVE

SPECIFICATION AND OVERAL DIMENSIONS
Description
Unit

Hydraulic data and dimensions

Nominal size
mm

15

20

25

32

40

50

inch

1/2

3/4

1

11/4

11/2

2

Overload flow-rate (qs)
m3/h

3

5

7

12

20

30

Permanent flow-rate (qp)
m3/h

1.5

2.5

3.5

6

10

15

Transitional flow-rate (qt)
l/h

22.5

37.5

52.5

90

150

225

Minimum flow-rate (qmin)
l/h

15

25

35

60

100

90

Min. reading
l

0.05

0.05

0.05

0.05

0.05

0.05

Max. reading
m3

99999

99999

99999

99999

999999

999999

Nominal pressure
MPa

1.6

1.6

1.6

1.6

1.6

1.6

ΔP at the qs
MPa

0.06

0.08

0.05

0.09

0.085

0.085

L
mm

165

190

260

260

300

300

I
mm

243

286

376

376

438

438

H
mm

108

108

126

126

170

170

B
mm

98.5

98.5

98.5

98.5

130

130

G
inch

G3/4B

G1B

G11/4B

G11/2B

G2B

G21/2B

R
inch

R1/2

R3/4

R1

R11/4

R11/2

R2

Weight
Without connections
Kg

1.20

1.43

2.34

2.42

3.77

4.72

With connections

1.37

1.69

2.79

3.05

4.47

6.12

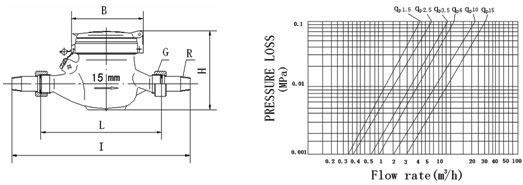

OVERALL DIMENSIONS                                                  PRESSURE LOSS CURVE
