Multi-jet

DS78TBR-15~20E/S (plastic body)


DS78TBR-E/S is an inferential, multi-stream, wet dial, straight reading type meter for cold water, and it’s Suitable for domestic use. Body and Internal mechanisms are made from wear-resistant, waterproof, antimagnetic and antiscaling plastic material. No leak, mechanical transmission not effected by external magnetic fields or ferrous particles in water.

SPECIALITY:
* Internal filter of adequate filtering section.
* Large measuring range and high flow accuracy
* Low start-up flow, high sensitivity, long life of service time.

WORKING CONDITION:
* The max. admissible pressure: 1.6MPa(16bar)
* Resisting water temperature of  50℃

Maximum permissible error:
Between qt (included) and qs is ±2%;
Between qmin and qt (excluded) is ±5%.
NOTE: The technical data conform to ISO4064 standard, class B.

FLOW-ERROR CURVE

SPECIFICATION AND OVERAL DIMENSIONS
Description
Unit

Hydraulic data and dimensions

Nominal size
mm

15

20

inch

1/2

3/4

Overload flow-rate (qs)
m3/h

3

5

Permanent flow-rate (qp)
m3/h

1.5

2.5

Transitional flow-rate (qt)
l/h

120

200

Minimum flow-rate (qmin)
l/h

30

50

Min. reading
l

0.05

0.05

Max. reading
m3

99999.9999

99999.9999

Nominal pressure
MPa

1.6

1.6

ΔP at the qs
MPa

≤0.10

≤0.10

L
mm

165

190

I
mm

245

290

H
mm

116

116

B
mm

100

100

G
Inch

G3/4B

G1B

R
Inch

R1/2

R3/4

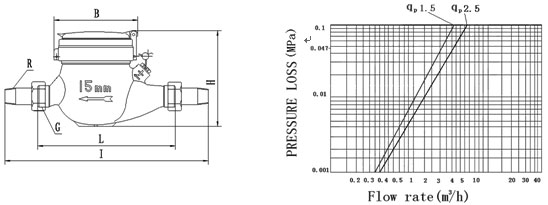

OVERALL DIMENSIONS                                                        PRESSURE LOSS CURVE
